ألن برادلي PanelView 2711P-K12C4D9 / 2711PK12C4D9

الصين ألن برادلي PanelView 2711P-K12C4D9 / 2711PK12C4D9 مزود
ألن برادلي PanelView 2711P-K12C4D9 / 2711PK12C4D9 مزود ألن برادلي PanelView 2711P-K12C4D9 / 2711PK12C4D9 مزود ألن برادلي PanelView 2711P-K12C4D9 / 2711PK12C4D9 مزود ألن برادلي PanelView 2711P-K12C4D9 / 2711PK12C4D9 مزود ألن برادلي PanelView 2711P-K12C4D9 / 2711PK12C4D9 مزود

صورة كبيرة :  ألن برادلي PanelView 2711P-K12C4D9 / 2711PK12C4D9

تفاصيل المنتج:

مكان المنشأ: صنع في الولايات المتحدة الأمريكية
اسم العلامة التجارية: PLC Module
إصدار الشهادات: All goods we supply are 100% original factory sealed with 1 year warranty!
رقم الموديل: ألن برادلي PanelView 2711P-K12C4D9 / 2711PK12C4D9

شروط الدفع والشحن:

الحد الأدنى لكمية: 1 جهاز كمبيوتر شخصى
الأسعار: $2988.00 (USD/PCS)
تفاصيل التغليف: 100٪ جديد الأصلي
وقت التسليم: في المخزن؛ 4-6 أسابيع للطلب
شروط الدفع: باي بال، T / T، ويسترن يونيون.
القدرة على العرض: 10 pcs
مفصلة وصف المنتج

2711P-K12C4D9 technical data PDF download 2711P-K12C4D9 PanelView Plus 6 1250 Keypad 12.1 in DC

الفئة: وحدات التحكم المنطقية القابلة للبرمجة، ومزودات الطاقة، ووحدات الإدخال/الإخراج
الشركة المصنعة: روكويل
المجموعة: طرفية PanelView Plus 6

The 2711P-K12C4D9 is a PanelView Plus 6 1250-model terminal: 12.1 in at 800 x 600 (SVGA) on a color TFT, with keypad input and 24V DC over 18...32V DC.

All 700...1500 terminals carry Ethernet, RS-232 and two USB host ports, a rear communication module slot for DH+/DH-485 or ControlNet, and 512 MB RAM with 512 MB nonvolatile memory. The suffix 9 adds the extended Windows CE 6.0 features; display, power and cutout are unchanged.

2711P-K10C4A8 لوحة مفاتيح، ملون، إيثرنت + RS-232 + 2 USB، مدخل تيار متردد متوفر
2711P-T10C4A8 شاشة لمس، ملون، إيثرنت + RS-232 + 2 USB، مدخل تيار متردد متوفر
2711P-B10C4A8 لوحة مفاتيح وشاشة لمس، ملون، إيثرنت + RS-232 + 2 USB، تيار متردد متوفر
2711P-K10C4D8 لوحة مفاتيح، ملون، إيثرنت + RS-232 + 2 USB، مدخل تيار مستمر متوفر
2711P-T10C4D8 شاشة لمس، ملون، إيثرنت + RS-232 + 2 USB، مدخل تيار مستمر متوفر
2711P-B10C4D8 لوحة مفاتيح وشاشة لمس، ملون، إيثرنت + RS-232 + 2 USB، تيار مستمر متوفر
2711P-K10C4A9 لوحة مفاتيح، ملون، إيثرنت + RS-232 + 2 USB، تيار متردد، CE موسع متوفر
2711P-T10C4A9 شاشة لمس، ملون، إيثرنت + RS-232 + 2 USB، تيار متردد، CE موسع متوفر
2711P-B10C4A9 لوحة مفاتيح وشاشة لمس، ملون، تيار متردد، ميزات CE موسعة متوفر
2711P-K10C4D9 لوحة مفاتيح، ملون، إيثرنت + RS-232 + 2 USB، تيار مستمر، CE موسع متوفر
2711P-T10C4D9 شاشة لمس، ملون، إيثرنت + RS-232 + 2 USB، تيار مستمر، CE موسع متوفر
2711P-B10C4D9 لوحة مفاتيح وشاشة لمس، ملون، تيار مستمر، ميزات CE موسعة متوفر

مواصفات المنتج 2711P-K12C4D9 (PDF)
 التطبيق
 طرفية مشغل PanelView Plus 6، موديل 1250، 12.1 بوصة
 رقم الكتالوج
 2711P-K12C4D9
 اسم العلامة التجارية
 روكويل
 حجم الشاشة
 12.1 بوصة
 نوع الشاشة
 شاشة TFT ملونة نشطة
 الدقة
 800 × 600 (SVGA)
 عمق الألوان
 رسومات ملونة بدقة 18 بت
 المنطقة النشطة
 246 × 184 ملم
 السطوع
 300 شمعة/متر مربع
 إدخال المشغل
 لوحة مفاتيح
 شاشة لمس
 غير مجهزة
 منافذ الاتصال
 إيثرنت 10/100، RS-232، 2 منفذ USB مضيف، بالإضافة إلى فتحة وحدة اتصال واحدة
 طاقة الإدخال
 24 فولت تيار مستمر اسمي، نطاق 18...32 فولت تيار مستمر
 استهلاك الطاقة
 70 واط كحد أقصى، 2.9 أمبير عند 24 فولت تيار مستمر؛ 39 واط نموذجي
 الذاكرة
 512 ميجابايت ذاكرة وصول عشوائي، 512 ميجابايت ذاكرة غير متطايرة (حوالي 79 ميجابايت ذاكرة مستخدم مجانية)
 نظام التشغيل
 Windows CE 6.0 مع ميزات موسعة
 وحدة تخزين قابلة للإزالة
 فتحة SD قابلة للتبديل السريع، 1784-SDx / 1784-SDHCx
 فتحة اللوحة
 257 × 390 ملم (10.11 × 15.35 بوصة)
 الأبعاد
 282 × 416 × 55 ملم
 الوزن
 3.4 كجم تقريبًا
 الإضاءة الخلفية
 CCFL، 50,000 ساعة كحد أدنى عند 25 درجة مئوية، قابلة للاستبدال في الميدان
 بطارية الساعة
 2711P-RY2032 (CR2032)، 4 سنوات كحد أدنى عند 25 درجة مئوية
 درجة الحماية
 NEMA Type 12, 13, 4X داخلي و IP54, IP65 (أمامي)

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711P-UM006 (module specifications) and 2711P-TD001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

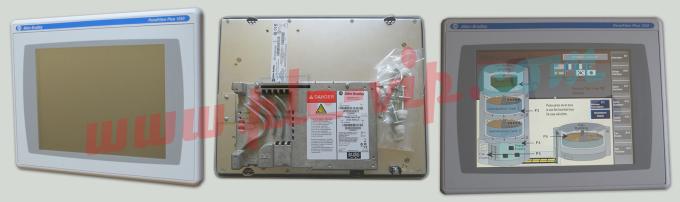

2711P-K12C4D9 PanelView Plus 6 12.1 in terminal, original listing photograph 1 2711P-K12C4D9 PanelView Plus 6 12.1 in terminal, original listing photograph 2

ما هي 2711P-K12C4D9

The 1250 model is the 12.1 in size of the PanelView Plus 6 range: 800 x 600 (SVGA), 18-bit color, active area 246 x 184 mm, 300 cd/m2. Operator input is the stainless-steel membrane keypad with numeric, navigation and function keys; there is no touch screen, so the application must be built for key navigation.

The front measures 282 x 416 and sits 55 mm behind the panel; the cutout is 257 x 390 mm (10.11 x 15.35 in).

The larger the front, the more the enclosure carries: 3.4 kg approx. of terminal hangs on the mounting levers together with the door, so check hinge rating and panel thickness before installing.

المواصفات التي توجه التصميم

Display: 12.1 in, 800 x 600 (SVGA), 18-bit color, active area 246 x 184 mm, 300 cd/m2. The backlight is a cold-cathode fluorescent lamp rated 50,000 hours minimum at 25 deg C and is field replaceable on 700...1500 terminals, unlike the LED backlight of the 400 and 600 models.

Input power: 24V DC nom (18...32V DC), 70 W max (2.9 A at 24V DC), 39 W typical. A 1500-model AC terminal is rated 160 VA maximum and 65 VA typical; the DC terminals draw 70 W maximum (2.9 A at 24V DC) and 39 W typical, so size the supply on the maximum figures and the heat budget on the typical ones.

CCFL thermal control: when the internal temperature falls below 10 deg C the backlight runs at full rated current for at least five minutes to warm the display, and above 60 deg C it is underdriven to 40% or less of full brightness. This changes intensity only, so a dim screen in a cold or hot cabinet is normal behaviour, not a failure.

Front protection is NEMA Type 12, 13 and 4X indoor plus IP54 and IP65; relative humidity 5...95% noncondensing, 15 G shock at 11 ms, operating altitude up to 2000 m.

الفتحة، الخلوص والتركيب

Cut 257 x 390 mm (10.11 x 15.35 in) using the template supplied with the terminal. Depth to the rear of the logic module is 55 mm and the communication module adds more, so keep at least 100 mm clear where a module is fitted.

A touch front and a keypad front need different openings in this size as well: 257 x 338 mm (10.11 x 13.29 in) against 257 x 390 mm (10.11 x 15.35 in). Decide the catalog number before the enclosure is cut.

Torque the mounting levers evenly and re-check the corners; on a 12.1 in front one slack lever shows up as an IP65 leak at the gasket.

الطاقة، التأريض والأسلاك

DC: 18...32V DC, 70 W maximum, 2.9 A at 24V DC, 39 W typical. AC: 100...240V AC, 50...60 Hz, 160 VA maximum, 65 VA typical.

Power terminal blocks accept 0.3...2.1 mm2 (22...14 AWG) 90 deg C copper at 0.45...0.56 N m (4...5 lb in), two wires per terminal up to 1.3 mm2 (16 AWG).

Functional earth is mandatory: the DC negative is internally tied to the FE terminal and the AC input relies on protective earth. Land the earth conductor first and torque it before the terminal cover goes back on.

The real-time clock is backed by a 2711P-RY2032 coin cell, 4 years minimum at 25 deg C, and drifts about plus or minus 2 minutes per month.

الاتصال والبرامج

Standard: Ethernet 10/100 with auto MDI/MDI-X, RS-232, two USB 2.0 host ports, and a rear slot for a DH+/DH-485 or ControlNet communication module, scheduled or unscheduled.

Ethernet serves EtherNet/IP tag access, FactoryTalk ViewPoint clients and project download; RS-232 covers DF1, ASCII, bar-code readers and printers; a USB flash drive moves applications and data logs without touching the network.

FactoryTalk View Machine Edition 6.10 or later is required. The hot-swappable SD slot takes 1784-SDx and 1784-SDHCx cards for file transfer, firmware upgrade and data logging.

USB circuit parameters for nonincendive field wiring: 5.25V DC, 1.68 A short-circuit current, 10 microfarad, 15 microhenry.

اختيار رقم كتالوج موديل 1250

Three choices separate the rows in this size: operator input (keypad, touch, or keypad and touch), input power (AC or DC), and the operating system suffix (8 = Windows CE 6.0, 9 = Windows CE 6.0 with extended features). Display, memory and communication are identical across the size.

Touch-only keeps the smaller opening (257 x 338 mm (10.11 x 13.29 in)) and the lighter 3.2 kg approx. front; any keypad front moves to 257 x 390 mm (10.11 x 15.35 in) and 3.4 kg approx.. If the application is already written for touch, adding a keypad buys nothing except panel area and mass.

AC input suits a cabinet that already has 100...240V; DC input at 70 W maximum is the lighter load where a 24V supply with the current headroom exists. Suffix 9 adds the extended Windows CE features needed by some older FactoryTalk View ME projects.

أسئلة متكررة — 2711P-K12C4D9

هل تحتوي 2711P-K12C4D9 على شاشة لمس؟

لا. هذه الطرفية تعمل بلوحة المفاتيح فقط؛ طرفية اللمس موديل 1250 هي 2711P-T12C4D9.

ما هي الفتحة التي تحتاجها 2711P-K12C4D9؟

257 × 390 ملم (10.11 × 15.35 بوصة). يبلغ قياس الواجهة الأمامية 282 × 416 بعمق 55 ملم.

ما هي دقة العرض التي توفرها 2711P-K12C4D9؟

800 × 600 (SVGA) بألوان 18 بت على مساحة نشطة 246 × 184 ملم.

كم تستهلك 2711P-K12C4D9 من الطاقة؟

18...32 فولت تيار مستمر، 70 واط كحد أقصى (2.9 أمبير عند 24 فولت تيار مستمر) و 39 واط نموذجي.

هل يمكن استبدال الإضاءة الخلفية لـ 2711P-K12C4D9؟

نعم. تستخدم الطرفيات من 700 إلى 1500 إضاءة خلفية CCFL قابلة للاستبدال في الميدان مصنفة بـ 50,000 ساعة كحد أدنى عند 25 درجة مئوية؛ تستخدم موديلات 400 و 600 إضاءة خلفية LED غير قابلة للاستبدال.

كم يبلغ وزن 2711P-K12C4D9؟

3.4 كجم تقريبًا لهذه الواجهة الأمامية؛ نسخة اللمس من نفس الحجم تزن 3.2 كجم تقريبًا.

ما هي خيارات الاتصال التي تدعمها 2711P-K12C4D9؟

إيثرنت 10/100، RS-232 ومنفذين USB مضيف قياسية؛ تقبل الفتحة الخلفية وحدة اتصال DH+/DH-485 أو ControlNet.

ما هي الذاكرة التي تحتوي عليها 2711P-K12C4D9؟

512 ميجابايت ذاكرة وصول عشوائي و 512 ميجابايت ذاكرة غير متطايرة، حوالي 79 ميجابايت متاحة للتطبيق، على نظام Windows CE 6.0 مع ميزات موسعة.

ما الذي يحل محل بطارية الساعة في 2711P-K12C4D9؟

2711P-RY2032، بطارية عملة معادلة CR2032، 4 سنوات كحد أدنى عند 25 درجة مئوية.


مصادر البيانات. القيم الفنية في هذه الصفحة مأخوذة من 2711P-UM006 و 2711P-TD001، بالإضافة إلى صفحة منتج Rockwell لرقم الكتالوج هذا. أي سمة لا تطبعها المنشورات يتم تمييزها بـ "غير منشورة" بدلاً من أخذها من صفحة موزع. رقم الكتالوج والتعبئة وحالة المخزون هي سجل المخزون لهذا الإدراج.
